hydraulic water well drilling machine Crawler Mounted Well Drilling Rig
ST 300 Meters Large Pneumatic Borewell Machine Product Descrption:
The Pneumatic Water Well Drilling Rig can create drilling jobs in different strata, borehole diameter can up to 140-325mm. The crawler water drilling rig with hydraulic technology,supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor air intake design, prolong the service life of diesel engine. Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic control table, convenient operation.
ST 300 Meters Large Pneumatic Borewell Machine Main Parameter:
| Drilling Depth | 300m |
| Dia.hole | φ140-325mm |
| Advance Length one time | 6.6m |
| Working pressure | 1.7-3.0MPa |
| Air consumption | 17-35m³/min |
| Length of rod | 1.5m,2m,3m,6m |
| Dia. Of rod | φ76, φ89,φ102,φ114 |
| Lifting power | 24T |
| Rotation torque | 8500-11000N.m |
| Rotation Speed | 40-70r/min |
| Diesel Engine | Yuchai |
| Engine Power | 85Kw/2200rpm |
| Travelling speed | 0-2.5 Km/h |
| Climb capacity | 30° |
| Weight | 9000kgs |
| Dimension | 5900x2000x2850mm |
| Application | Complicated geological conditions:Rock,Mud,Sand etc. |
| Drilling Way | Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling |
| Dth Hammer | 4",5",6",8" Drill hammer or CIR110, 130, 150,170 |
ST 300 Meters Large Pneumatic Borewell Machine Main Advantages:
1. The speed range of the drilling rig is 14-1030r / min, and the maximum output torque is 9500n. M.
2. The drilling rig adopts long travel speed doubling mechanism and mechanical power head with a stroke of 3500mm, which is used to improve drilling efficiency and reduce drilling plugging and burning accidents.
3. The drilling rig adopts double oil pumps for oil supply, single pump for drilling and two pumps for combined flow for lifting and tripping; Less power loss and short auxiliary time.
4. Crawler chassis is adopted, the stroke of outrigger cylinder is 1.5m, it can be loaded automatically, and it is convenient to move and transport.
5. The drilling machine is in mechanical operation. Some functional interfaces are reserved in the hydraulic system, which can be expanded according to the process requirements of different users.
1. Are you trading company or manufacturer?
We are professional trading company, Our products have been exported to more than 20 countries of Azerbaijan, Kazakhstan, Asia, South America, Africa, India, Egypt, and get a good reputation in the world.
Hydraulic Mobile Mining Truck Mounted Drill Machine 200m Cheap Trailer Water Well Drilling Rig
2. Are your products qualified?
Yes, our products all have gained ISO certificate, and we have specialized quality inspection department for checking every machine before leaving our factory.
3. How about your machine quality?
All of our machines must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after-sale service?
Yes, we have professional technic after-sale service team which will offer you the best technical maintenance guidance. Engineers are available to be abroad for service.
5. What about the quality warranty?
We offer one-year quality warranty.
6.How long can you deliver the machine?
Generally, we can deliver the machine in 15 days.
Product Tags:
|
|

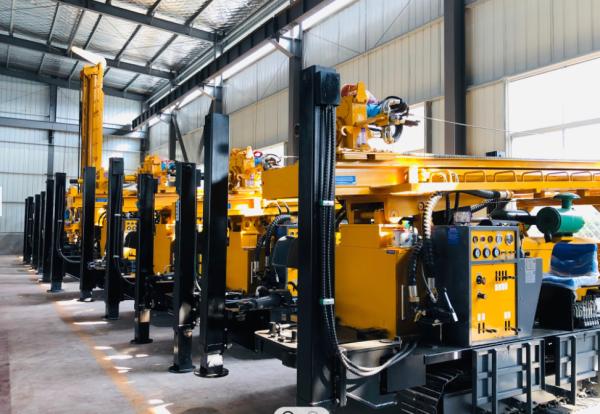

Water Well Crawler Mounted 300m Hydraulic Rotary Drilling Rig Images
|
